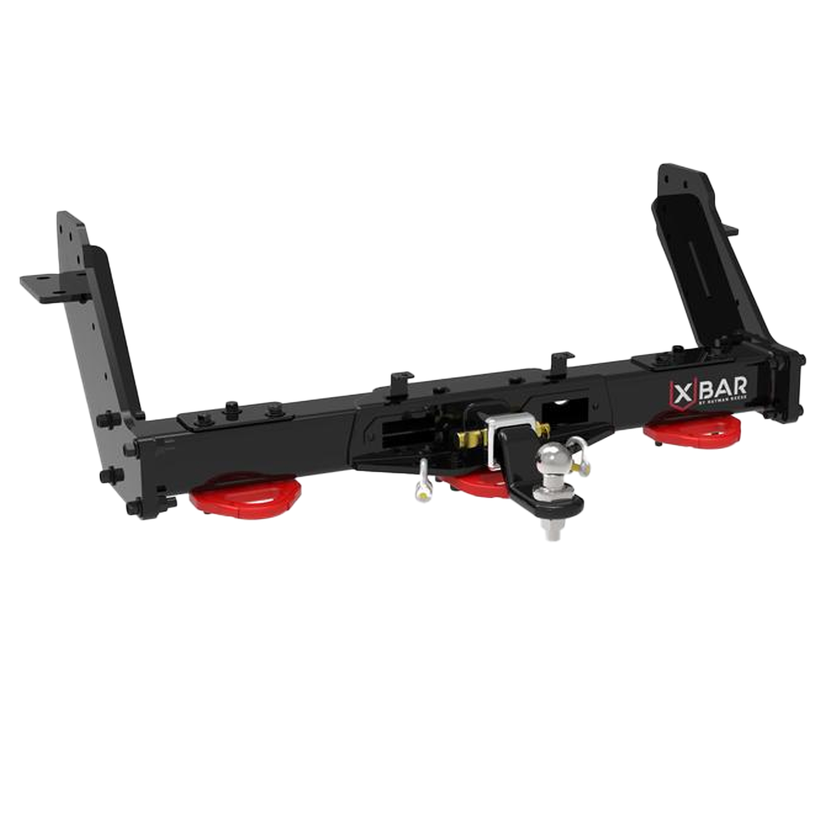

HAYMAN REESE X-Bar Recovery Towbar

The Hayman Reese X-Bar is built tough for off-road action.
Born from a need for; improved departure angles, maximum tow ratings and rear recovery points, the X-Bar is equipped to handle any off-road situation.

SUITS FOLLOWING VEHICLES
Foton Tunland P4 V7 & V9 Ute - June 2025 onward

SPECIFICATIONS

  • 3500kg / 350kg Towbar & Ball Weight Rating
  • 8000kg Centre Recovery Hook Rating
  • 4000kg Side Recovery Hook Rating (Single)
  • No Bumper Cut Required
  • 50mm x 50mm Square Hitch Receiver
  • LUG - 21352

KIT OPTIONS
Towbar Only - Does not include wiring
Towbar, ECU & Wiring - 7 Pin Flat Socket
Towbar, ECU & Wiring - 12 Pin Flat Socket

FEATURES

  • Maximum Clearance - Up to 100mm vertically
  • 5 degree Departure Angle
  • Increased Thickness Sidearms
  • Custom Forged 700-Grade Steel Recovery Points & TBM
  • High Tensile AUS Grade 10.9 Fasteners
  • Twin Protected Trailer Socket Mount Points
  • Full ADR Compliance - Allows a 50mm height increase from suspension or tyre upgrades
  • SmartPin Hitch Pin - with integrated anti-rattle feature
  • Maximum Vehicle Towing Capacity
  • Smart Click Wiring Solutions
  • Rated D Shackles
  • Premium eCoat & Powder Coat Finish
  • Hayman Reese Limited Lifetime Warranty
  • Tested to Australian Standards AS/4177 and ADR 62/02 in NATA accredited lab



FITTING INSTRUCTIONS
Fitment by a Specialist Installer recommended
Click here for Fitting Instructions
"Trailer Mode" must be enabled via infotainment for trailer light functionality


Note: Stock levels may vary due to sales across multiple platforms. Please contact us to confirm availability.
Image is for illustration purposes only. Actual product may vary slightly in appearance









All Hayman Reese products come with a Manufacturer Warranty from the date of invoice.

WARRANTY PERIOD

Towbars – Lifetime warranty (for as long as the towbar is owend by the original purchaser, excludes 2nd hand purchases)
Brake Controllers – 3 years

WARRANTY TERMS
Warranty replacement parts are only issued after inspection of part by the manufacturer (this may require return of the product to our Knoxfield head office) and are subject to approval.

Performance Exhaust will provide a replacement part (no refunds) for the following issues:
Item is damaged and unusable upon arrival
There is a manufacturing fault with the product
Product has failed due to a manufacturing fault or quality

All warranties are limited and do not apply if:
Parts are not installed correctly
Parts have been abused, altered or damaged in any way
Parts are not correctly maintained
Parts are not operated within the manufacturers specifications, installed on modified or high performance engines, vehicles or race cars.


Manufacturer Warranty covers the replacement of the part only and does not include any additional costs of labour, fitting or damages. Performance Exhaust is not liable for losses or expenses incurred due to defects or any third party claims.





SKU 03585XW-P
Brand Hayman Reese
Shipping Weight 40.0000kg
Shipping Width 0.370m
Shipping Height 0.260m
Shipping Length 1.130m
Unit Of Measure ea
Assembled Length 1.100m
Assembled Height 0.230m
Assembled Width 0.340m
